33~43dBm single system band selective repeater
33~43dBm single system band selective repeater
33~43dBm single system band selective repeater
Description
SYN-33~43-S

Overview:

Work Frequency: CDMA450, LTE700 (A/B/C/D), IDEN800, CDMA800, GSM900 &EGSM, DCS1800, PCS1900, CDMA2000, WCDMA2100, AWS2100, LTE2600 and so on.

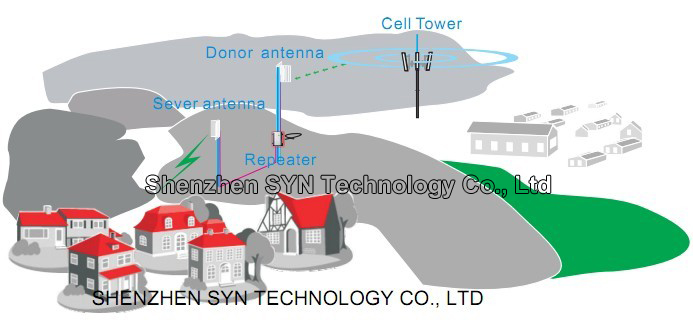

SYN-33~43-S high power repeater are cost effective solutions to cut the overall cost of signal coverage extension without the added need of implementing more BTS sites. They can be applied to many large areas including large public buildings, shopping malls, exhibition halls, parking lots, tunnels, village, valley and rural areas.

The mobile operator could use it to amplify its own signal only and make it better than the signal of rivals which can lead the competition.

Advantages:

1   With IF SAW filter technology for good out of band rejection, the band selective repeaters is designed to selective specific sub-bands of mobile system.

2.  Built-in AGC and ALC circuits, which can automatically control the gain of the repeater depending upon the strength of input signals.

3. 31dB MGC (Manual gain control) 1dB per step available for both uplink and downlink to adjust the gain value for proper coverage during installation or maintenance.

4. The repeater can be locally and remotely monitored and controlled through its monitor module by OMT or OMC software. (Optional)



Electrical specification

 Uplink

 Downlink

 Frequency  Range

Customized upon request

 Max .Gain

 SYN-33-S

 80dB

 85dB

 SYN-37-S

 85dB

 85dB

 SYN-40-S

 85dB

 90dB

 SYN-43-S

 85dB

 90dB

 Max .Output Power

 SYN-33-S

 20dBm

 33dBm

 SYN-37-S

 25dBm

 37dBm

 SYN-40-S

 25dBm

 40dBm

 SYN-43-S

 25dBm

 43dBm

 Band width (-3dB)

Available upon request

 MGC ( Step Attenuation )

 31dB / 1dB step

 Automatic Level Control

 20dB

 Gain Flatness

4dB(P-P)

 Noise Figure

6dB

 VSWR

1.5

 Group Delay

5μs

 LED Alarm

 Standard

 Power LED

Green light when power on.

 ALC LED

Orange @ ALC 1~5dB, Red @ ALC 20dB~25dB

 Mechanical Specifications

 Standard

 I /O Port

N-Female

 Impedance

50 ohm

 Operating Temperature

-25ºC~+55ºC

 Environment Conditions

IP55

 Dimensions

435x325x135mm/ 565x400x210mm

 Weight

 15Kg/35kg

Power Supply

Input AC90~264V

Software

Optional

Local Remote Monitoring

Via USB Port or SMS or GPRS Modem
