23~30dBm single system band selective repeater
23~30dBm single system band selective repeater
23~30dBm single system band selective repeater
Description
SYN-23~30-S

Overview:

Work Frequency: CDMA450, LTE700 (A/B/C/D), IDEN800, CDMA800, GSM900 & EGSM, DCS1800, PCS1900, CDMA2000, WCDMA2100, AWS2100, LTE2600 and so on.

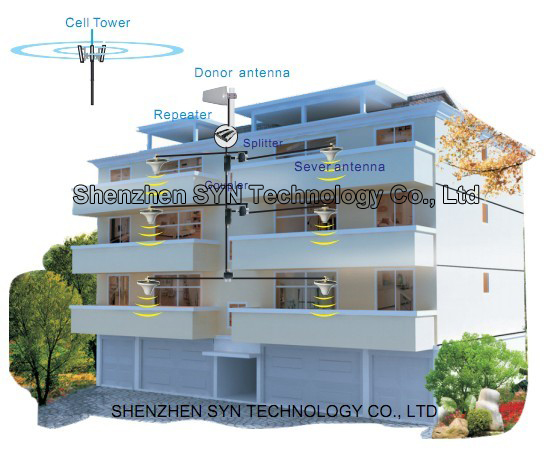

SYN-23~30-S single system signal repeater series are designed for the mobile operator indoor coverage solution. They are used in the some hot sites, where have the high traffics and are not worth to install a Micro BTS. Using the band selective repeater can easily realize the fast coverage.

The mobile operator could use it to amplify its own signal only and make it better than the signal of rivals which can lead the competition.



Advantages:



1   With IF SAW filter technology for good out of band rejection, the band selective repeaters is designed to selective specific sub-bands of mobile system.

2.  Built-in AGC and ALC circuits, which can automatically control the gain of the repeater depending upon the strength of input signals.

3. 31dB MGC (Manual gain control) 1dB per step available for both uplink and downlink to adjust the gain value for proper coverage during installation or maintenance.

4. The repeater can be locally and remotely monitored and controlled through its monitor module by OMT or OMC software. (Optional)



Electrical specification

 Uplink

 Downlink

 Frequency  Range

Customized upon request

 Max .Gain

 SYN-23-S

 70dB

 75dB

 SYN-27-S

 75dB

 75dB

 SYN-30-S

 75dB

 80dB

 Max .Output Power

 SYN-23-S

 15dBm

 23dBm

 SYN-27-S

 20dBm

 27dBm

 SYN-30-S

 20dBm

 30dBm

 Band width (-3dB)

Available upon request

 MGC ( Step Attenuation )

 31dB / 1dB step

 Automatic Level Control

 20dB

 Gain Flatness

4dB(P-P)

 Noise Figure

6dB

 VSWR

1.8

 Group Delay

5μs

 LED Alarm

 Standard

 Power LED

Green light when power on.

 ALC LED

Orange @ ALC 1~5dB, Red @ ALC 20dB~25dB

 Mechanical Specifications

 Standard

 I /O Port

N-Female

 Impedance

50 ohm

 Operating Temperature

-25ºC~+55ºC

 Environment Conditions

IP40

 Dimensions

250x220x52mm

 Weight

 3.2Kg

 Power Supply

Input AC90~264V,output DC12V / 5A

 Software

 Optional

 Local Remote Monitoring

Via USB Port or SMS or GPRS Modem
