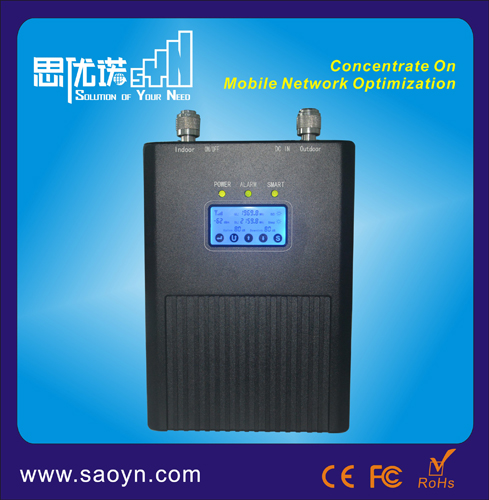

Feature:

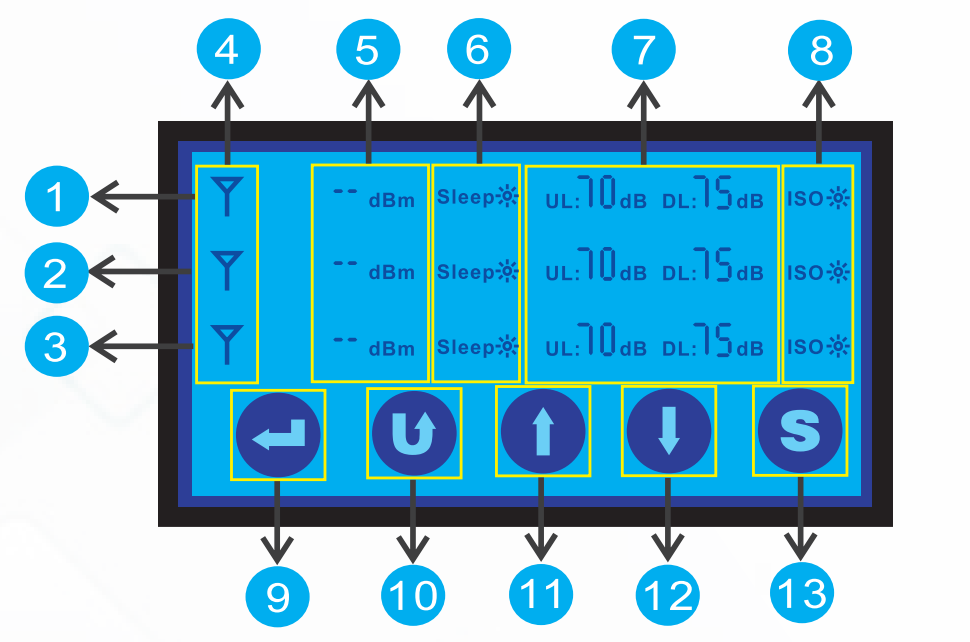

1. The line shows the working status of system 1.
2. The line shows the working status of system 2.
3. The line shows the working status of system 3.
4. 5 bars of the output signal strength indicator, which shows you the maximum output power of the repeater. Each signal bar represents 5dB.
5. The specific value of the input signal strength measured in dBm, tell us the exact input signal level.
6. Uplink sleep Mode. The uplink of the repeater is in standby mode when there is no call or data transmission. It will activate immediately when a call a data session is initiated.
7. Shows the UL & DL maximum gain.
8. Antenna Isolation Detection. When first power on the repeater, the repeater will detect the oscillation automatically between the outdoor antenna and indoor antenna.
9. Enter for selection or confirm the settings.
10. Back to the previous page or cancel the settings.
11. Increase the gain
12. Decrease the gain
13. Smart function that repeater could set the gain automatically to prevent the Alarm. Press this icon to turn ON or turn OFF this function.

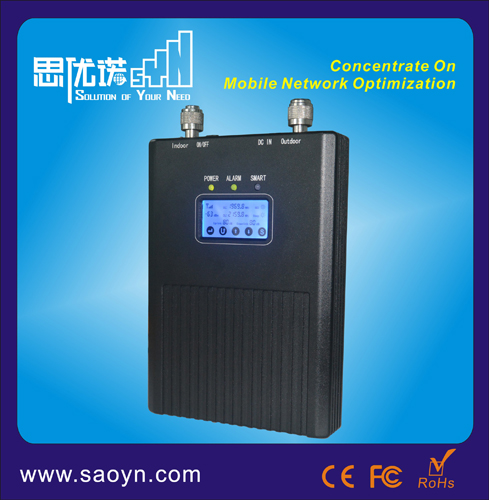

Specification:
|
Electrical specification
|
Uplink
|
Downlink
|
|
Frequency Range
|
EGSM900Mhz
|
880 ~ 915MHz
|
925 ~ 960MHz
|
|
DCS1800MHz
|
1710 ~ 1785 MHz
|
1805 ~ 1880 MHz
|
|
WCDMA2100MHz
|
1920 ~ 1980 MHz
|
2110 ~ 2170 MHz
|
|
Max .Gain
|
SYN-13L-F
|
≥ 65dB
|
≥ 65dB
|
|
SYN-15L-F
|
≥ 65dB
|
≥ 70dB
|
|
SYN-20L-F
|
≥ 70dB
|
≥ 70dB
|
|
SYN-23L-F
|
≥ 70dB
|
≥ 75dB
|
|
Max .Output Power
|
SYN-13L-F
|
≥ 10dBm
|
≥ 13dBm
|
|
SYN-15L-F
|
≥ 12dBm
|
≥ 15dBm
|
|
SYN-20L-F
|
≥ 15dBm
|
≥ 20dBm
|
|
SYN-23L-F
|
≥ 15dBm
|
≥ 23dBm
|
|
Band width
|
Wide Band
|
|
Munual Gain Control
|
≥ 31dB / 1dB step
|
|
Automatic Level Control
|
≥ 15dB, auto shut off after 15dB
|
|
Gain Flatness
|
EGSM & WCDMA
|
Tpy≤ 6dB
|
|
DCS1800MHz
|
Tpy≤ 8dB
|
|
Noise Figure
|
≤ 6dB
|
|
VSWR
|
≤ 2.0
|
|
Group Delay
|
≤ 0.5μs
|
|
Frequency stability
|
≤ 0.01ppm
|
|
LED Alarm
|
Standard
|
|
Power LED
|
Power Indicator
|
|
ALC LED
|
Orange @ ALC 1~5dB, Red @ ALC 15dB~20dB,
|
|
LED off after 5 seconds red
|
|
Mechanical Specifications
|
Standard
|
|
I /O Port
|
N-Female
|
|
Impedance
|
50 ohm
|
|
Operating Temperature
|
-25ºC~+55ºC
|
|
Environment Conditions
|
IP40
|
|
Dimensions
|
150*210*36mm
|
|
Weight
|
≤ 2.5Kg
|
|
Power Supply
|
Input AC100~240V,output DC 12V / 3A
|
|
Intelligent Functions
|
Antenna Isolation Detection, Uplink Sleep, Smart Function, Input and Output Signal Strength Indication
|
