10dBm single system mini repeater
10dBm single system mini repeater
10dBm single system mini repeater
Description
SYN-10M-F

Overview:



      SYN-10M-F single system series are designed for the end users, who are suffering a poor or blind signal and whose house, apartment or office area is between 50-150sqm.

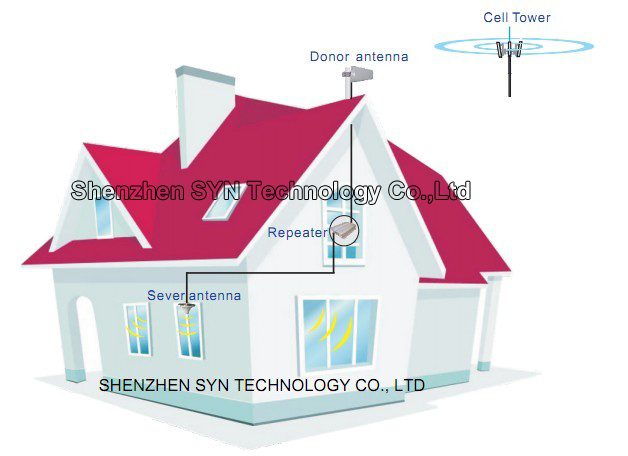

      Using a revolutionary, patent pending technology that protects the carrier network, the SYN-10M-F single system improves indoor cell phone coverage by capturing and repeating the outside signal, bringing it into the building and enhancing it.


      This process creates a "Cell Zone" in your house or office.



Advantages:



1.  Elegant and Compact design

2.  Built-in AGC and ALC circuits, which can automatically control the gain of the repeater depending upon the strength of input signals.

3.  15dB MGC (Manual gain control) 5dB one step available for both uplink and downlink to adjust the gain value for proper coverage during installation or maintenance.

4.  Auto shut off function available for both uplink and downlink to avoid deep self-oscillations from jamming the towers, saving your trouble from operators.

5.  Low power consumption - 4W only.





Item No. and Frequency:



  Item No.     Frequencies


  SYN-C10M-F    CDMA800 (Uplink: 824-849 MHz, Downlink: 869-894 MHz)

  SYN-C10M-F    GSM850 (Uplink: 824-849 MHz, Downlink: 869-894 MHz)

  SYN-G10M-F    GSM900 (Uplink: 890-915 MHz, Downlink: 935-960 MHz)

  SYN-D10M-F    DCS1800 (Uplink: 1710-1785Mhz, Downlink: 1805-1910Mhz)

  SYN-P10M-F    PCS1900 (Uplink: 1850-1910Mhz. Downlink: 1930-1990Mhz)

  SYN-W10M-F   WCDMA2100 (Uplink: 1920-1980Mhz, Downlink: 2110-2170Mhz)

  SYN-A10M-F    AWS2100 (Uplink: 1710-1755 MHz, Downlink: 2110-2155 MHz)

  SYN-L10M-F    LTE700 or LTE2600 or LTE



Coverage:



50-250sq.m coverage.


Specifications:


SYN-10M-F mini System

 Electrical specification

 Uplink

 Downlink

 Frequency Range

Customized upon request

 Max .Gain

 55dB

 60dB

 Max .Output Power

 10dBm

 10dBm

 Band width (-3dB)

Wide Band

 MGC

 15dB / 5dB step

 ALC

 15dB, auto shut off 31dB after 15dB

 Gain Flatness

6dB(P-P)

 Noise Figure

6dB

 VSWR

1.8

 Group Delay

0.5μs

 LED Alarm

 Standard

 Power LED

Green light when power on.

 ALC LED

Orange @ ALC 1~5dB, Red @ ALC 14dB~16dB,                                 LED off after 5 seconds red color

 Mechanical Specifications

 Standard

 I /O Port

N-Female

 Impedance

50 ohm

 Operating Temperature

-25ºC~+55ºC

 Environment Conditions

IP40

 Dimensions

129x95x30mm

 Weight

 0.8Kg

 Power Supply

Input AC90~264V,output DC5V / 2A
