10dBm dual system mini repeater
10dBm dual system mini repeater
10dBm dual system mini repeater
Description
SYN-DB10M-F
Overview:

      SYN-DB10M-F dual system series are designed for the end users, who are suffering a poor or blind signal and whose house or office area is between 50-150sqm.

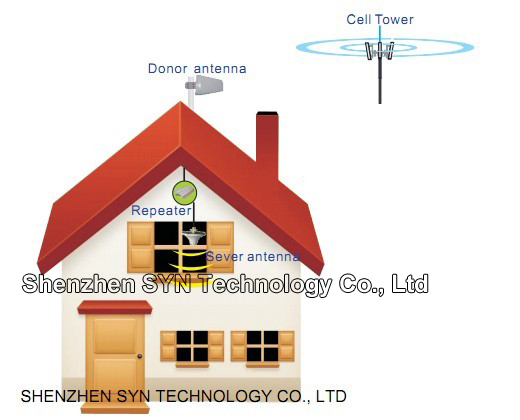

      Using a revolutionary technology that protects the carrier network, the SYN-DB10M-F (dual system) improves indoor cell phone coverage by capturing and repeating the outside signal, bringing it into the building and enhancing it.

      This process creates a "Cell Zone" in your house or office.

Features:

1.  Elegant and Compact design
2.  Built-in AGC and ALC circuits, which can automatically control the gain of the repeater depending upon the strength of input signals.
3.  15dB MGC(Manual gain control) 5dB one step available for both uplink and downlink to adjust the gain value for proper coverage during installation or maintenance.
4.  Auto shut off function available for both uplink and downlink to avoid deep self-oscillations from jamming the towers, saving your trouble from operators.
5.  Low power consumption - 4W only.

Item No. and Frequency:

  Item No.                Frequencies

  SYN-CP10M-F    CDMA800 (Uplink: 824-849 MHz, Downlink: 869-894 MHz)
                                & PCS1900 (Uplink: 1850-1910Mhz. Downlink: 1930-1990Mhz)
  SYN-GD10M-F    GSM900 (Uplink: 890-915 MHz, Downlink: 935-960 MHz)
                                & DCS1800 (Uplink: 1710-1785Mhz, Downlink: 1805-1910Mhz)
  SYN-GW10M-F    GSM900 (Uplink: 890-915 MHz, Downlink: 935-960 MHz)
                                &WCDMA2100 (Uplink: 1920-1980Mhz, Downlink: 2110-2170Mhz)
  SYN-CA10M-F    CDMA800 (Uplink: 824-849 MHz, Downlink: 869-894 MHz)
                                & AWS2100 (Uplink: 1710-1755 MHz, Downlink: 2110-2155 MHz)

Coverage:

50-250sq.m coverage.
